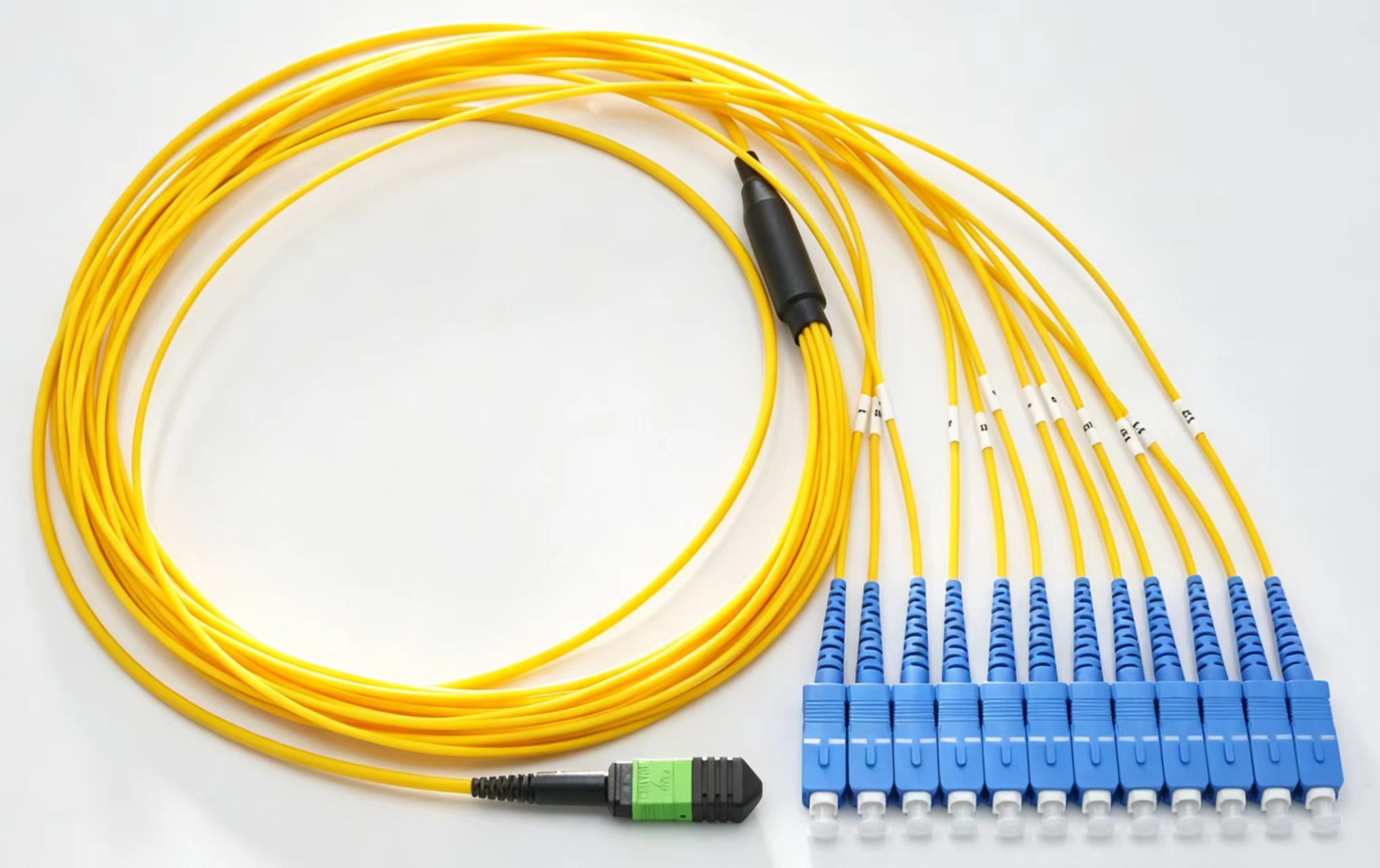

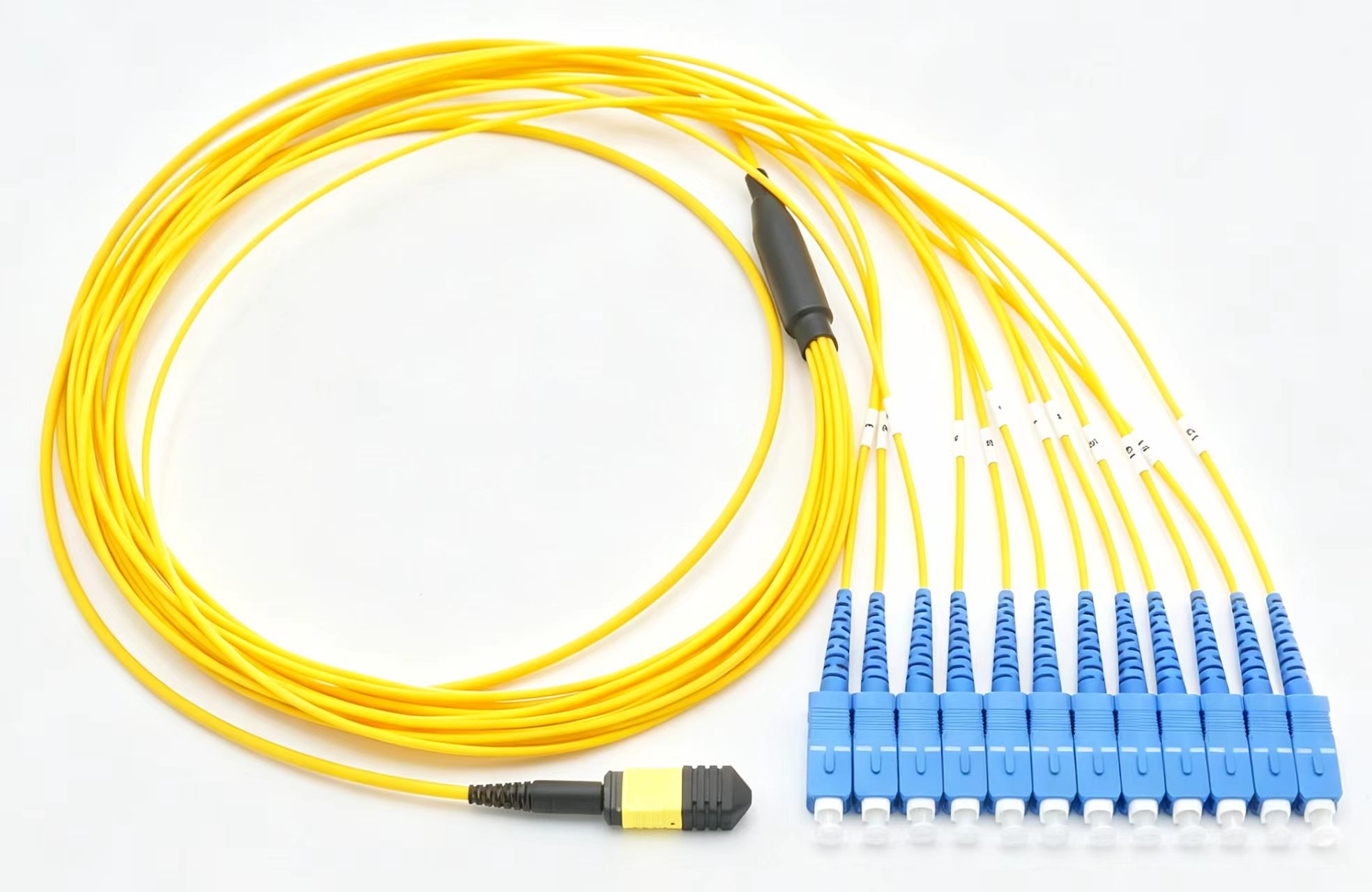

OS2 MPO/MTP® to SC 12 fiber Fan-out Patch Cord

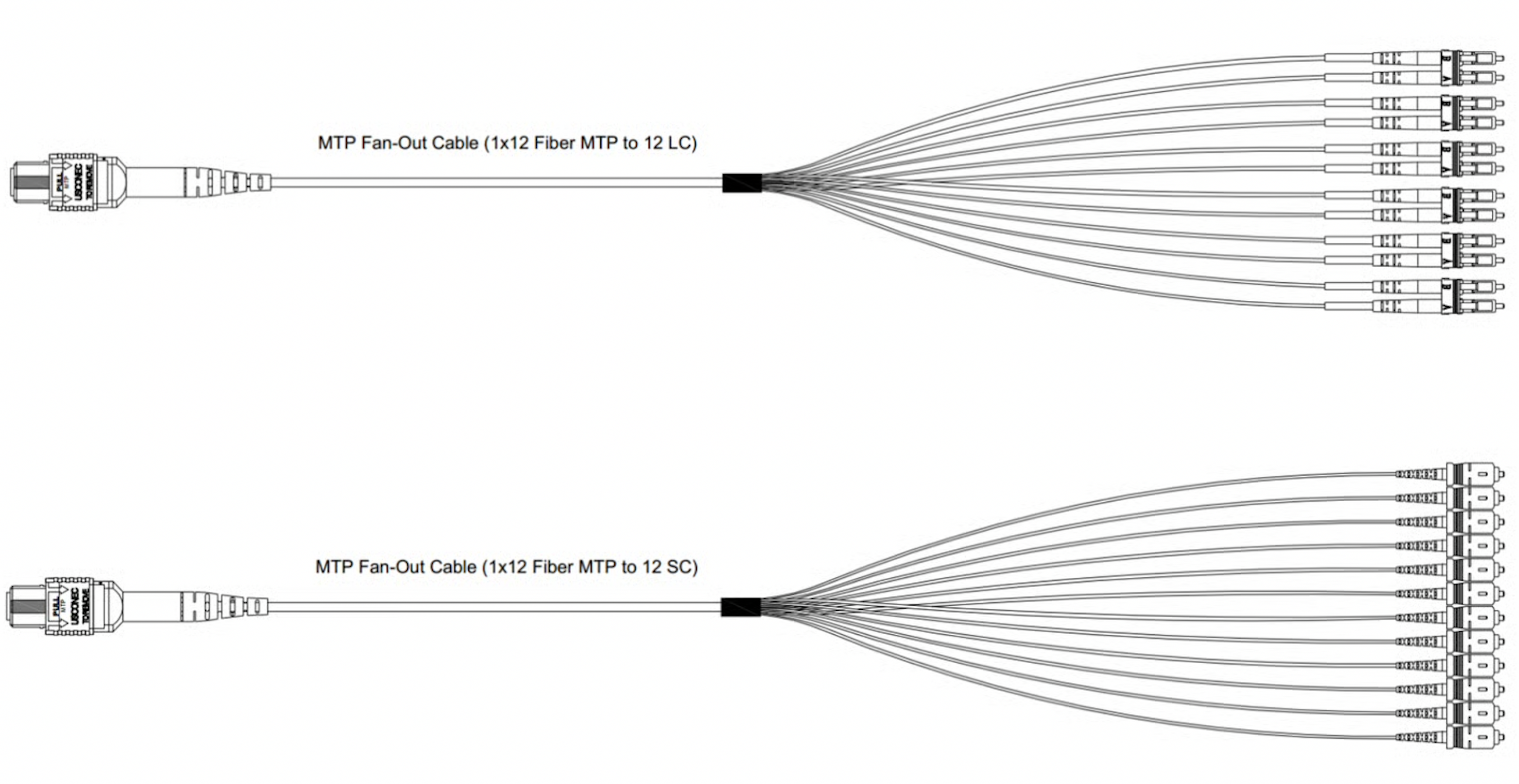

OS2 MPO/MTP® to SC 12 fiber Fan-out Patch Cord assemblies deliver efficient breakout solutions from high-density backbone cabling to active equipment, enabling streamlined connectivity in large-scale data centers. these assemblies are optimized for multi-lane parallel optic applications supporting 100G+ Ethernet.

Manufactured with bend-insensitive fiber and precision-terminated MTP® connectors, each fanout assembly is fully customizable by length, fiber type, polarity, and jacket rating. Every assembly undergoes rigorous factory testing for low insertion loss and compliance with TIA-568 and IEC 61754-7 standards, ensuring consistent performance and reliability in mission-critical environments.

Features

• Highly customizable to user preference

• Custom color jackets and connectors

MTP® Connector Compliances TIA/EIA-604-5

CONNECTOR                                    TYPICAL IL             MAX IL             RETURN LOSS

Single-mode MTP®                         0.25 dB                    0.75 dB             ≥ -60 dB

Single-mode MTP® (Low Loss)    0.10 dB                    0.15 dB             ≥ -20 dB

Cable Standard

• Single-mode OS2

       The standard single-mode offering is a 10mm OS2 bend insensitive fiber. Bend performances of 7.5mm and 5.0mm are also available.
